HPM 1850U

產品名稱：HPM 1850U
產品描述：

X. Y. Z 軸
X, Y, Z 行程l	1850 x 1400 x 905	mm
Work table
工作臺承重	4000	kg

Key Points
• The pallet can be turned manually to offer optimal access to the workpiece

• The B and C axes can be clamped together for rough machining

• A pallet magazine for workpieces up to 1750 kg in weight

• There is no platform. This means that the machine takes up less floor space

• Two loading stations. The pallets can be lowered hydraulically to a comfortable working heigh for loading and unloading.

Specifications
X. Y. Z 軸
X, Y, Z 行程l 1850 x 1400 x 905 mm
齒輪驅動工作臺
Swivelling axis - 20 / + 120 degree
Tilting axis n x 360 degree
工作主軸
10000 min-1, HSK-A100 34 / 324 kW / Nm
15000 min-1, HSK-A63 38 / 193 kW / Nm
24000 min-1, HSK-A63 30 / 75 kW / Nm
進給速度
進給速度 / 快速移動速度 (X, Y) 15 / 40 m/min
進給速度 / 快速移動速度 (Z) 15 / 40 m/min
進給速度 / 快速移動速度 (swivelling) 11 / 20 min-1
Work table
工作臺承重 4000 kg
換刀裝置
HSK-A100 30 / 175 piece
HSK-A63 46 / 120 / 210 piece
帶自動化的齒輪驅動工作臺
交換工作臺尺寸/工位 1000 x 1250 / 3x - / 刀位數
交換工作臺尺寸/工位 (4) 3000 - / piece
數控系統 (Heidenhain)
Heidenhain iTNC 530 / Siemens 840D -

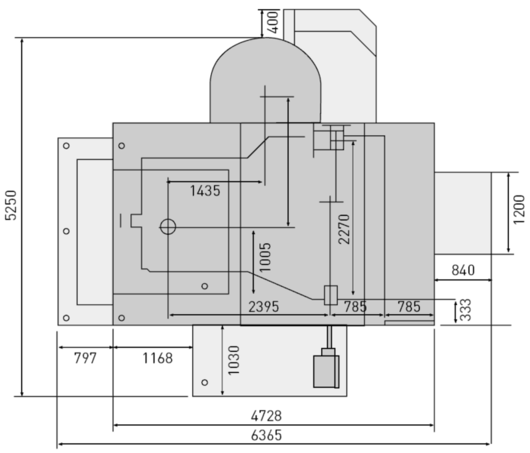

Pictures
